Saturn Tracker (Multi row linkage tracker)
Good slope adaptability, can adapt to continuous undulating terrain in the E-W direction of the photovoltaic power station;
Multi-row linkage operation, reduces the investment cost and operation and maintenance cost of photovoltaic power station;
Ultra-wide row spacing, does not affect the lighting requirements of farmland and water surface;
Ultra-wide row spacing, does not affect the lighting requirements of farmland and water surface;
The driving mechanism and mounting structure share foundation piles, lessening foundation piles, which reduces the investment cost of the photovoltaic power station and also reduces the impact on the land planting/breeding utilization area;

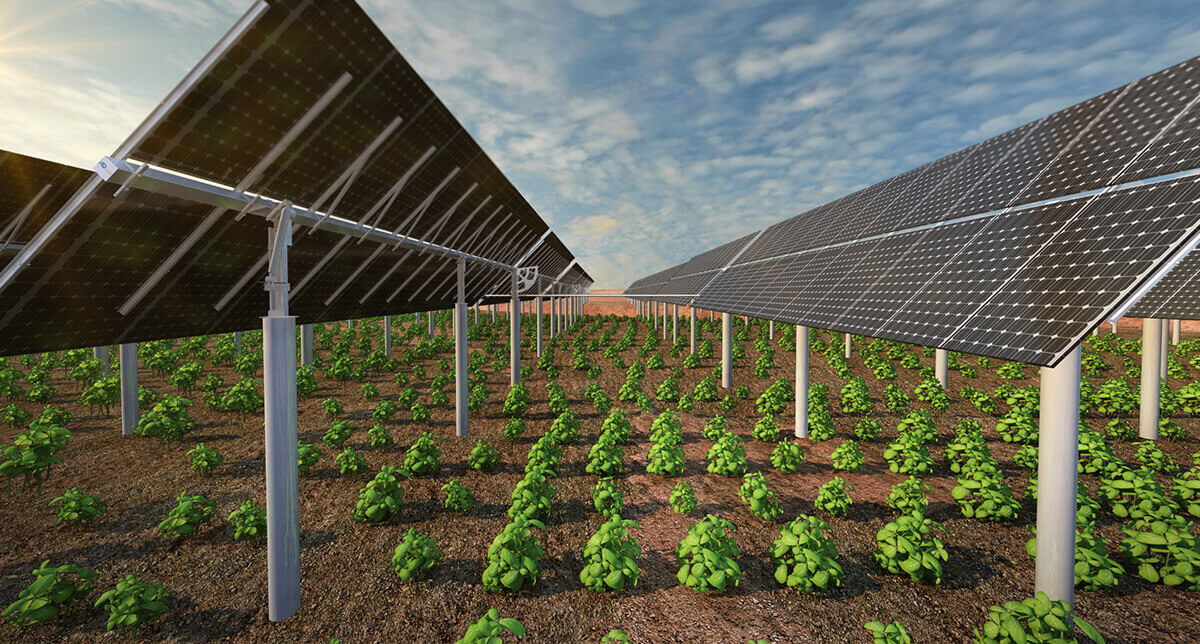

Applicable SceneAgriculture-light complementary power station, Fishing-light complementary power station, Forest-light complementary power station, Large scale ground power station.
| Product type | Multi row linkage |
|
|
|
| Tracking range | ±60° |
| Slope range | N-S：5°/ E-W：20° |
| Wind-resistant design | ≤38m/s |
| Gale protection | 18m/s |
| Main structural material | Q235B/Q355B/Q450 |
| Zinc coating thickness | ≥65μm |
| Pile foundation form | PHC/driven pile/cast-in-place pile |
| PHC pipe pile/driven pile/cast-in-place pile | ≥30% |
| Module Type | 182/210mm |
| Ground Clearance(Min) | 0.3~2.5m |
| Layout of Module | 1V/2V |
|
Module Quantity |
800pcs（std） |
| Tracking mode |
Astronomical algorithm / active tracking / anti shadow tracking |
| Tracking accuracy | ≤2° |
| Control mode | Closed loop feedback control |
| Control accuracy | ≤0.3° |
| Power supply mode | AC power supply |
| Power consumption | 1.2kWh/day |
| Controller | PLC |
| Working environment temperature | -25℃~+60℃ |
| Communication mode | Zigbee wireless communication |
|
Weather protection |
Gale/snow/hail |
|
Structure |
10 years |
|
Transmission and automation control |
5 years |
