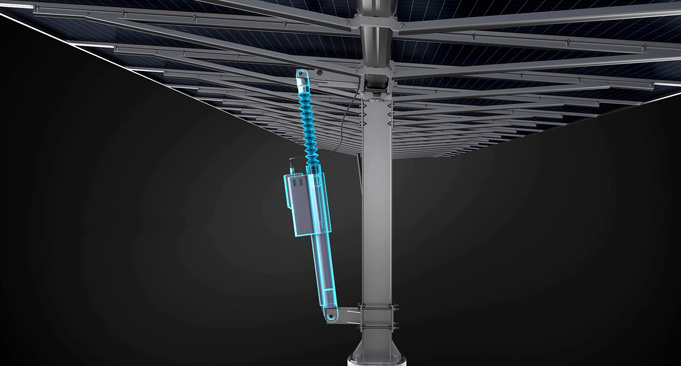

Venus Tracker(EHA Electro-hydraulic Actuator Driving Single Row Independent Tracker)
| Product type | Single row independent drive tracker |
| Driving mechanism | EHAelectro-hydraulic actuator，Single point/Multi points |
| Tracking range | -60°~+60° |
| Slope range | N-S: 5° |
| Wind-resistant design | ≤40m/s |
| Gale protection | ≤18m/s (Customizable) |
| Main structural material | Q235B/Q355B/ZAM |
| Coating thickness | ≥65μm or ZM-275g/m2 |
| Pile foundation form | PHC pipe pile/driven pile/cast-in-place pile |
| Land use rate（GCR） | ≥30% |
| Safety protection | Standard E-braking System |
| Linkage mode/motor type | Electrical linkage/brushless motor |
| Module type | 182/210mm |
| Ground clearance (Min) | 0.5m |
| Layout of module | 1P/2P |
| Module quantity (Max) | 120pcs |
| Tracking mode | Astronomical algorithm / active tracking / anti shadow tracking |
| Tracking accuracy | ≤1° |
| Control mode | Closed loop feedback control |
| Control accuracy | ≤1° |
| Power supply mode | Self-powered under below 1500V DC |
| Backup battery | Lithium battery，6Ah |
| Controller | MCU |
| Working environment temperature | -40℃~+60℃ |
| Communication mode | Lora/Zigbee wireless communication |
| Weather protection | Gale/snow/hail |
| Structure | 15 years |
| Transmission and automation control | 5 years |
